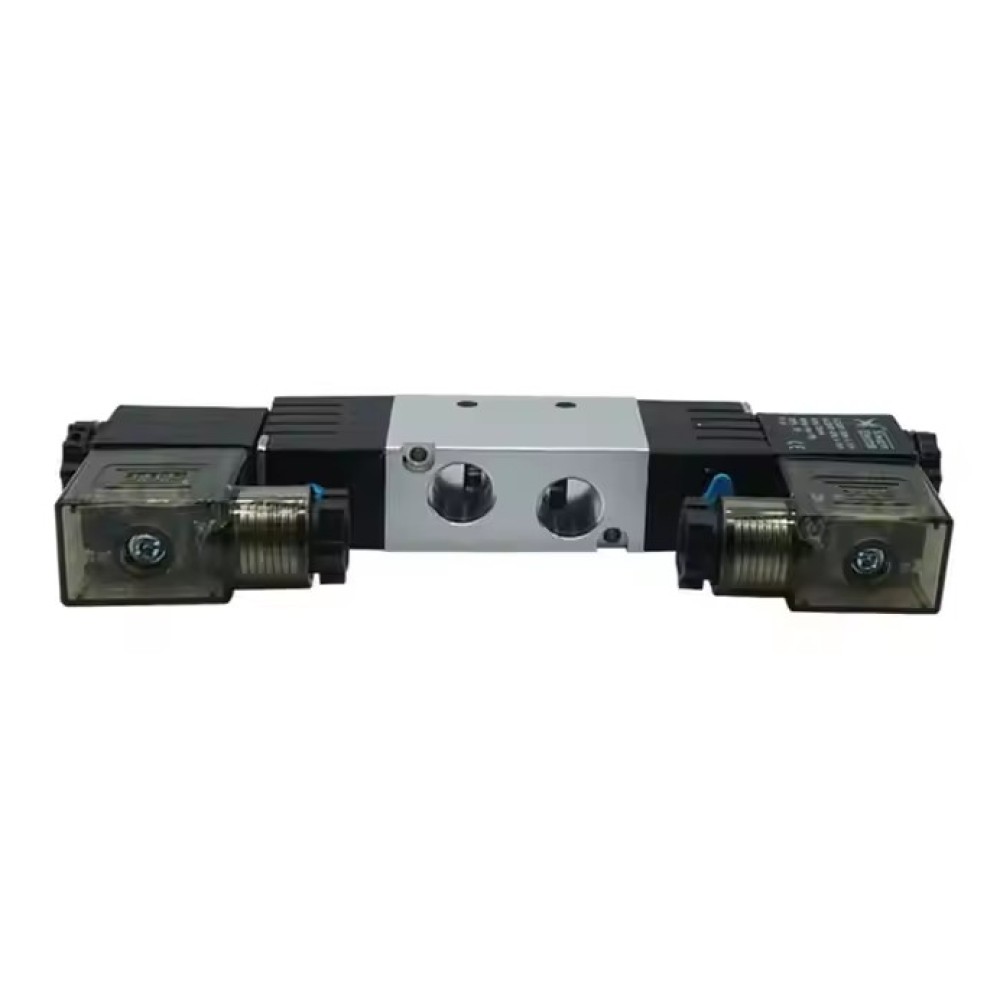

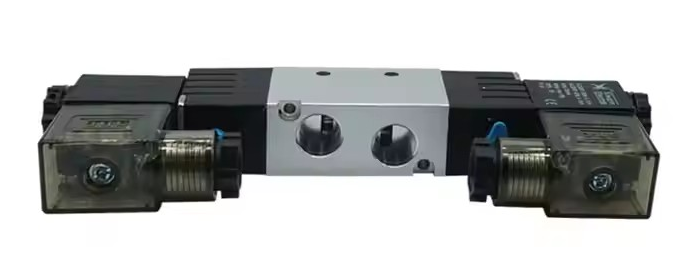

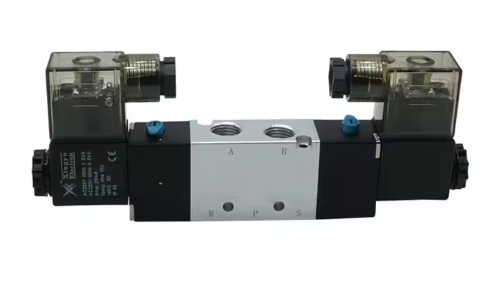

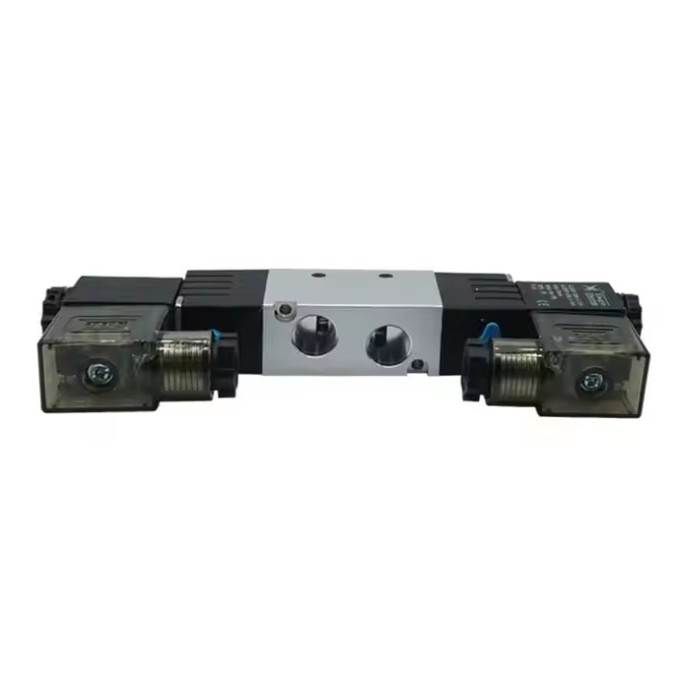

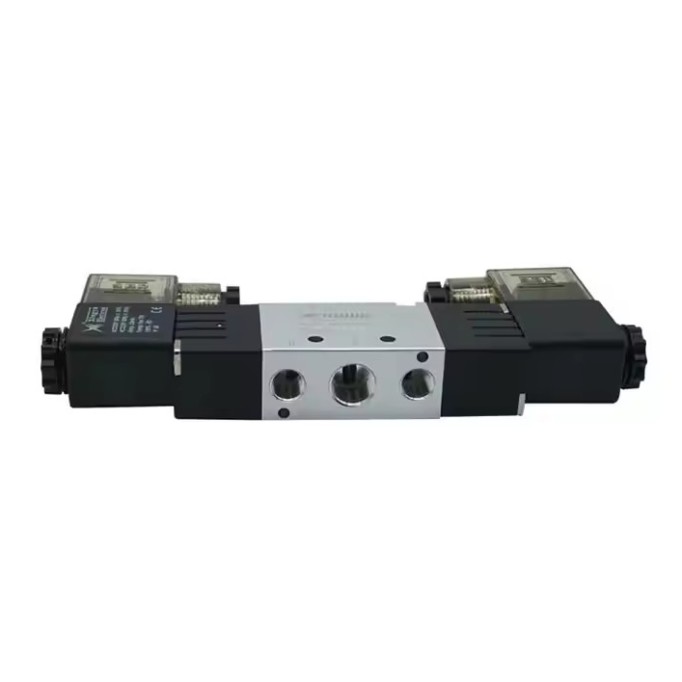

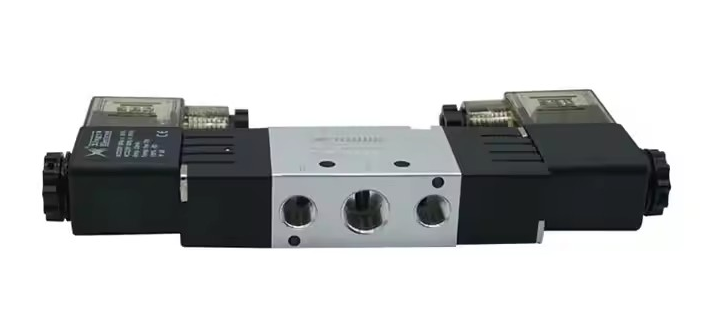

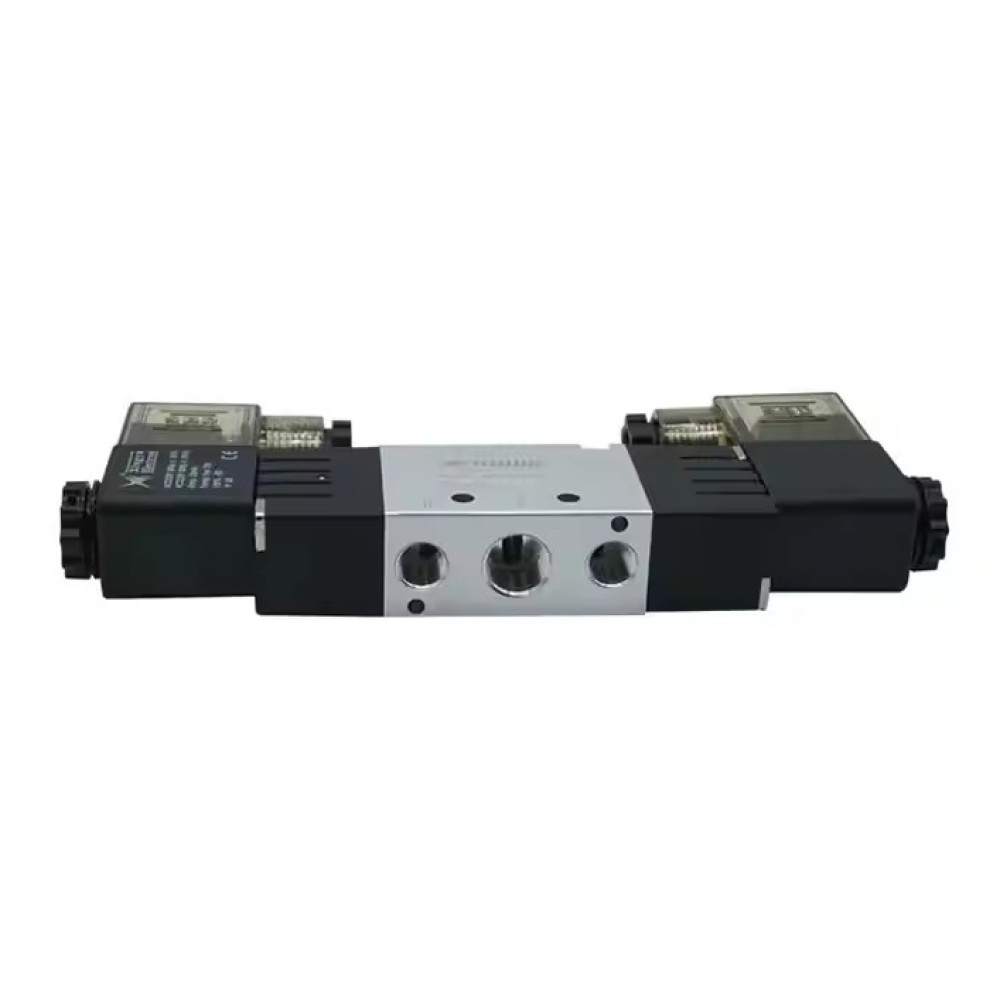

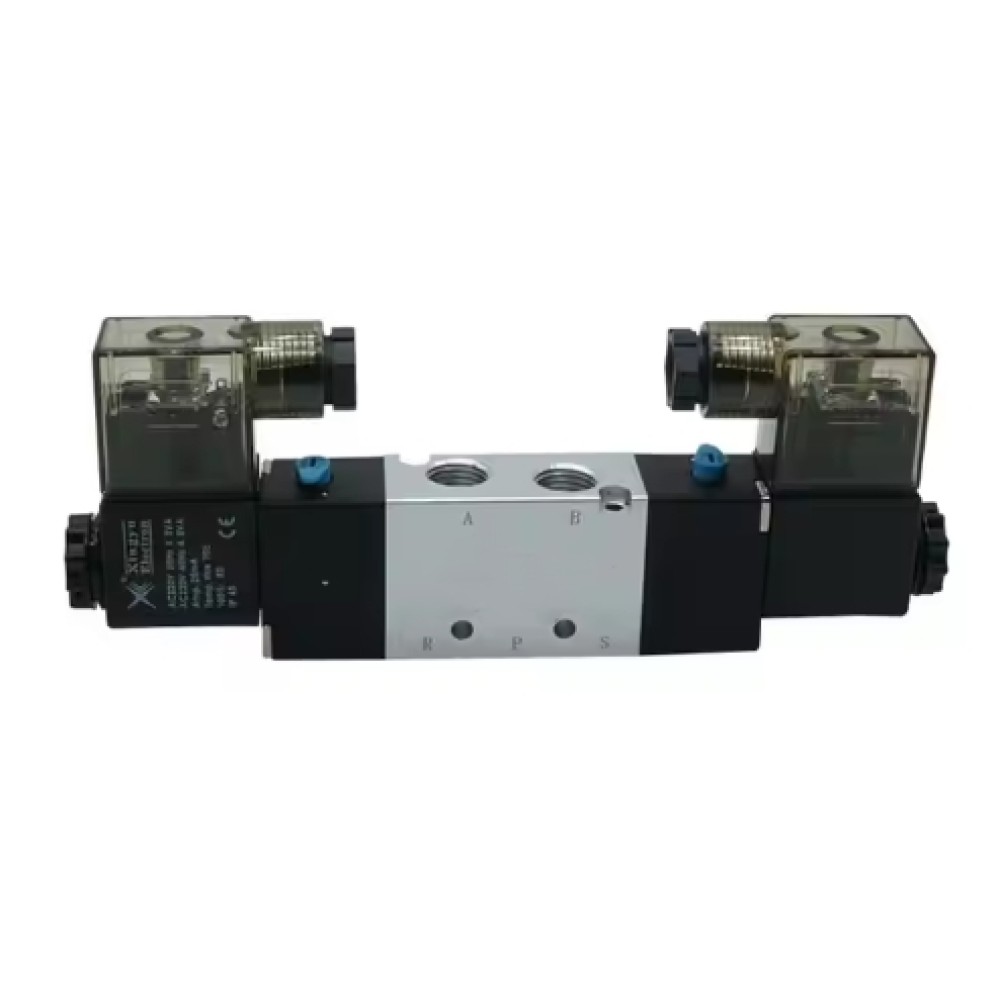

Hot Sale 4V220-08 AC220V Electrovalve
Hot Sale 4V220-08 AC220V Electrovalve
About this product
1. Pilot-oriented mode:Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3.Three position solenoid valves have three kinds of central function for your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start
pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
Key attributes
Industry-specific attributes
port size
G1/8", G1/4"
structure
Pilot
Other attributes
application
3C Electronics, Lasers, Semiconductor, Battery, Automatization, etc.
place of origin
China
power
Solenoid
customized support
OEM, ODM, OBM
warranty
One Year
model number
4V220-08
temperature of media
Normal Temperature
brand name
None
media
Air
Product Name
Solenoid Valves
Model
4V220
Position
5 Port 2 Position
Fluid
Air
Action
Internal Pilot Operated Type
Working Pressure
0.15 to 0.8 MPa
Proof Pressure
1.2 MPa
Working Temperature
-20 to 70 ℃
Rated Voltage
24 VDC, 220 VAC
Power Consumption
4.5 VA, 3 W
Packaging and delivery
Selling Units:
Single item
Single package size:
19X10X10 cm
Single gross weight:
0.400 kg
